23.6inch 1920*1080 300cd/m² Monitor LCD PANEL (M236HGE-L20)
M236HGE-L20 is 60Hz frame CHIMEI INNOLUX 23.6inch Monitor LCD panel , the resolution is1920*1080
Brightness is 300cd/m²; wide view angle is 85/85/80/80 ;
It is Used for Desktop ,advertising machine,monitors etc
| Manufacturer | CHIMEI INNOLUX | Model Namel | M236HGE-L20 |
| Screen Size | 23.6INCH | Screen Type | LCM , a-Si TFT-LCD |
| Pixel Format | 1920*1080(RGB) , WXGA | Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Active Area(mm) |
521.28 × 293.22 (H×V) | Arrangement | RGB Vertical Stripe |
| Bezel Area(mm) | 525.22 × 297.22 (H×V) | Outline(mm) | 544.8 × 320.5 (H×V×D) |
| Luminance | 300 cd/m² (Typ.) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Viewing Angle | 85/85/80/80 | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Good View at | 6 o'clock | Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M | Signal Type | LVDS (2 ch, 8-bit) , 30 pins , Connector |
| Frame Rate | 60Hz | Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | Backlight | WLED 40K hours , W/O Driver |
| Used for | Desktop,Monitors | Touch screen | without |

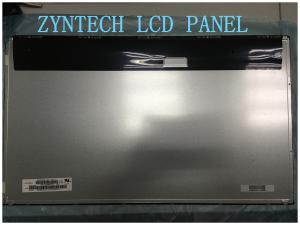

- Pics of the Original 23.6inch CHIMEI INNOLUX Monitor LCD panel M236HGE-L20
1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .
2. Ship parts from shenzhen or HK .
3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.
4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.
5. FQA :
PAYMENT : T/T ,Western union
Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.
Delivery time : 1-3 working days upon payment.
- Quality Assurance of Display Panel
Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.
The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.
Even if within the warranty period, if the following occurs, the repair service is not available.
1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.
2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.
3. The product malfunction caused by the fall and transportation failures after purchase.
4. The malfunction and damaged caused by the other barriers (man-made factors or external device).
Any problems in the after-sales service, please contact our agents or us directly.
